2 Inch Single Sphere Rubber Expansion Joint
2 Inch Single Sphere Rubber Expansion Joint (MPN: STX-EXP-SGL2IN) is an industrial-duty component engineered for continuous factory operations, piping systems, and machinery maintenance in Kenya. Key verified ratings include Joint Type: Single Sphere Arch Rubber Expansion Joint, Nominal Pipe Size: 2 Inch (DN50), Flange Connection Standard: DN50 PN16 Flanges. Standard plant applications include Pump Suction & Discharge Lines, HVAC Chilled & Hot Water Circulation, Commercial Laundry Water Lines. Held at our STARNEX counter on Enterprise Road, Nairobi Industrial Area for immediate collection or same-day dispatch. When requesting a quotation, please specify required quantity, operating voltage/phase, pipe connection size, and delivery destination.
Functional engineering application

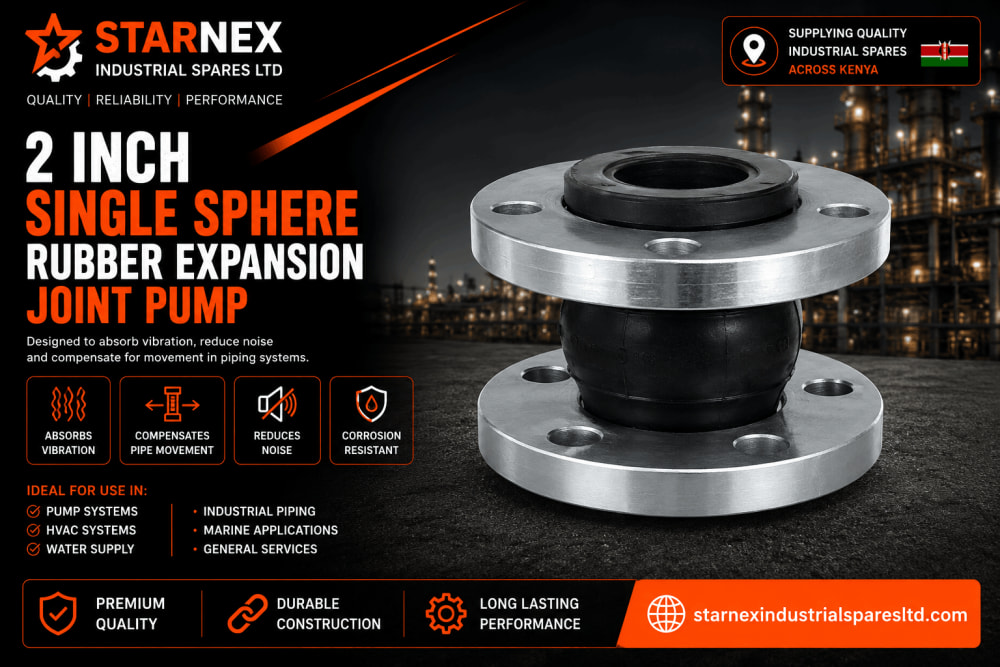

The 2 Inch (DN50) Single Sphere Rubber Expansion Joint is an economical and compact flexible pipe connector designed to isolate pump vibration, absorb thermal pipe growth, and reduce noise in industrial piping systems. Formed from high-grade EPDM rubber reinforced with nylon cord and steel wire beads, this single-arch joint connects directly to pump suction and discharge flanges, preventing vibration transmission into rigid boiler headers and building structures. Supplied with floating 2" PN16 carbon steel flanges rated for 16 Bar operating pressure and temperatures up to 110°C.
Compact 2" (DN50) PN16 single sphere EPDM rubber expansion joint with galvanized flanges for pump vibration dampening & thermal expansion.
Quotation & fulfilment
Parametric technical attributes
| Generic STX-EXP-SGL2IN | |
| IDENTIFICATION | |
| Component Type | 2 Inch Single Sphere Rubber Expansion Joint |
| Manufacturer / Brand | Generic |
| Part Number (MPN) | STX-EXP-SGL2IN |
| Stock Keeping Unit (SKU) | STX-EXP-SGL2-053 |
| TECHNICAL PARAMETERS | |
| Joint Type | Single Sphere Arch Rubber Expansion Joint |
| Axial Compression | 12 mm |
| Axial Elongation | 8 mm |
| Lateral Deflection | 10 mm |
| Overall Face-to-Face Length | 105 mm |
| Weight | 3.1 kg |
| Country of Manufacture | International OEM Standard |
| CONSTRUCTION & CONNECTION | |
| Nominal Pipe Size | 2 Inch (DN50) |
| Flange Connection Standard | DN50 PN16 Flanges |
| Elastomer Body Material | High Grade EPDM Rubber |
| Reinforcement Material | Nylon Cord Fabric & Steel Wire Rings |
| Flange Material | Electro-Galvanized Carbon Steel |
| PERFORMANCE & RATINGS | |
| Nominal Pressure Rating | 16 Bar (232 PSI) |
| Working Temperature Range | -10°C to +110°C |
| COMPLIANCE & LOGISTICS | |
| Stock Availability | On request |
System fitment & verified replacements
Interchangeable models
Commonly installed on equipment from
Common questions on this part
The compact face-to-face length is 105 mm.
It is rated for 16 Bar (PN16) working pressure.
Yes, EPDM withstands hot water and steam condensate up to 110°C.
Place it as close to the pump suction and discharge ports as possible.
Yes, available at STARNEX Industrial Spares in Nairobi Industrial Area.
Single sphere is shorter (105mm) for tight spaces; double sphere (175mm) absorbs twice the movement.
No, the integrated rubber flange face acts as its own self-sealing gasket.
Yes, it is designed specifically to isolate motor hum and pump vibration.
Yes, EPDM is non-toxic and suitable for potable water lines.
Standard 4-hole PN16 DN50 flange pattern.
